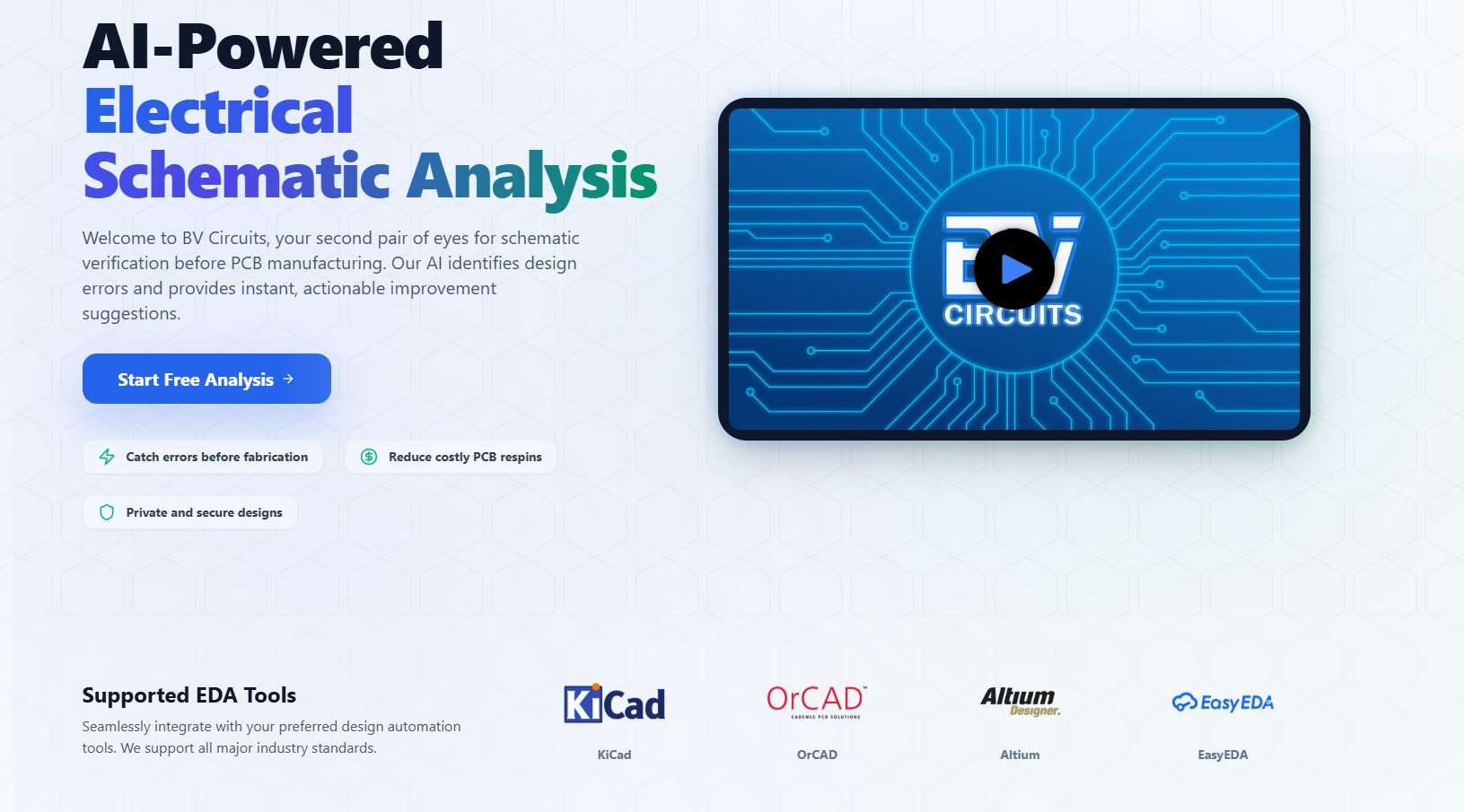

BV Circuits – AI-Powered Electrical Schematic Analysis

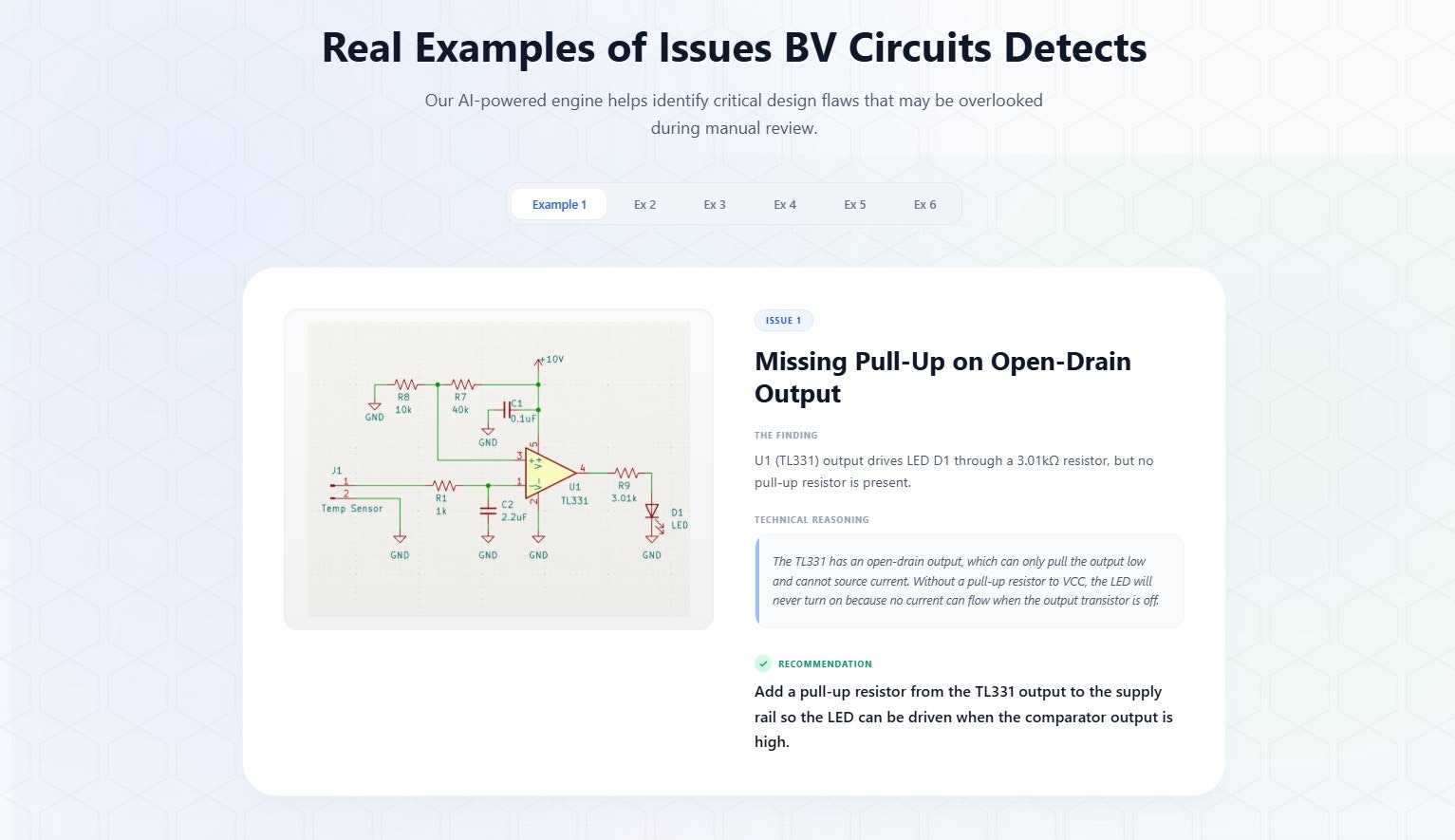

Summary: BV Circuits uses AI and engineering rules to analyze electrical schematics against industry standards and component datasheets, identifying design errors before manufacturing. It helps detect issues like incorrect resistor values, IC pin misapplications, and unstable feedback loops in PCB designs.

What it does

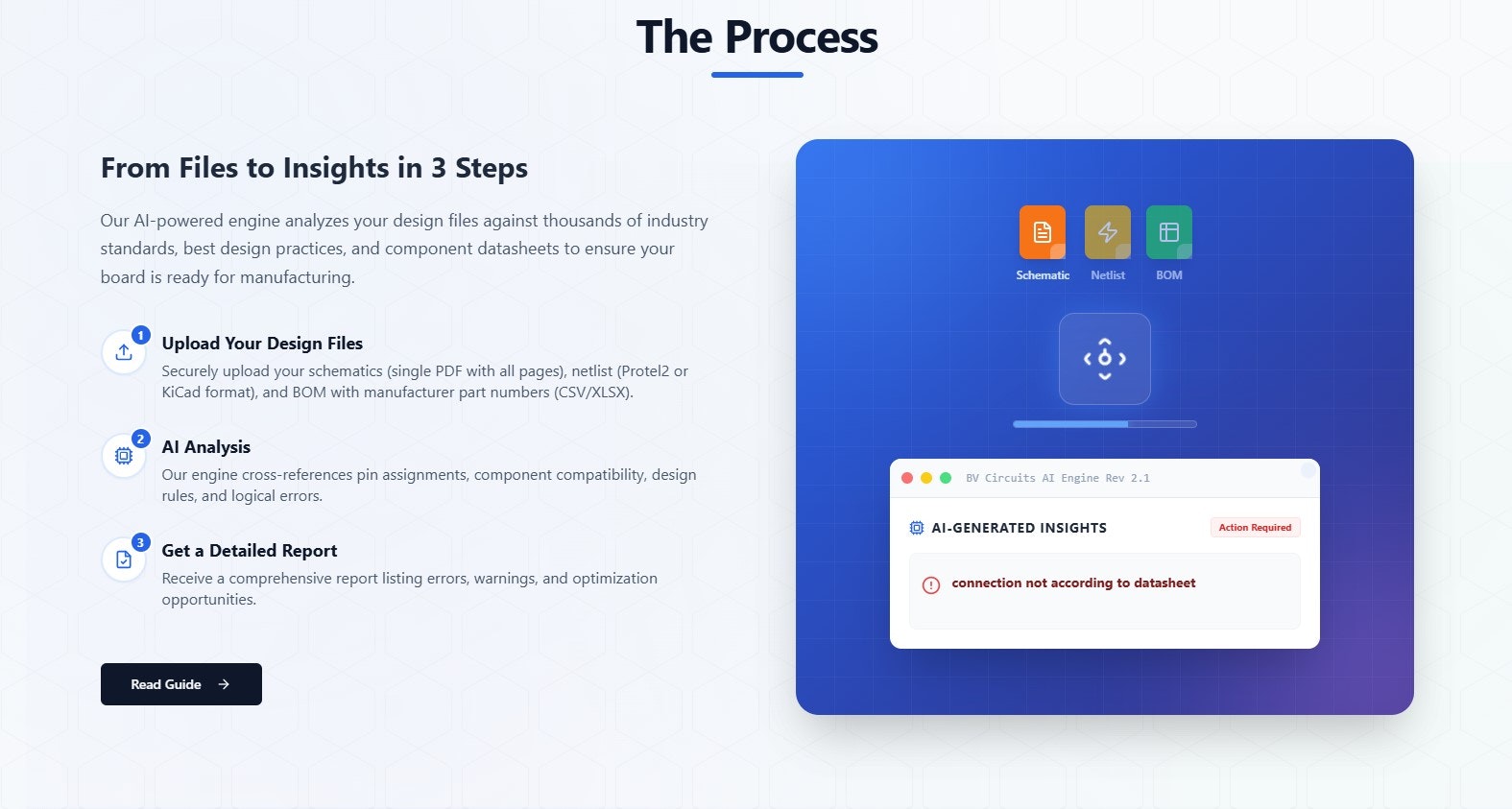

The platform reviews schematic design files using AI combined with deterministic engineering rules derived from 25+ years of experience, ensuring compliance with best practices and standards.

Who it's for

Hardware engineers and PCB designers seeking to catch schematic mistakes early in the design process.

Why it matters

It prevents costly errors found only during lab testing or after product release by providing automated schematic validation before manufacturing.
